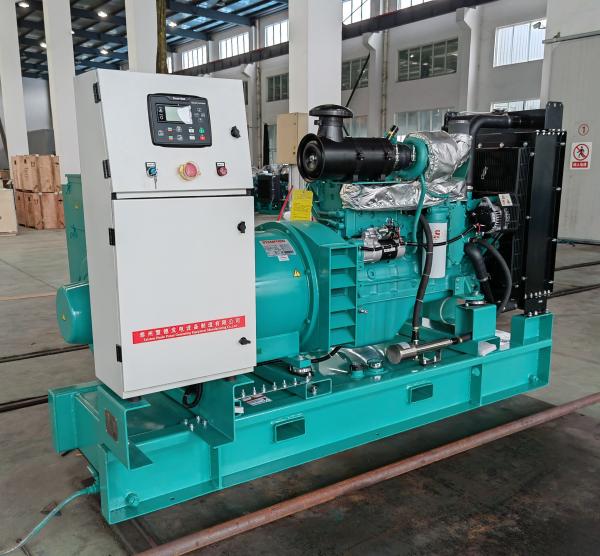

Rated Power 100kWe Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.The engine block made of high-strength alloy cast iron has better rigidity, less vibration and lower noise. The four-valve design of each cylinder of the engine optimizes the air/fuel mixture, and uses advanced technology to optimize the combustion process, significantly reducing fuel consumption and improving reliability
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4. All the major components – the engine, alternator,are manufactured and built by Cummins,This integrated approach means each element of a generator set is matched to work in harmony from the start.
5. Optional Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability.
6. The main components are from American technology with reliable quality
7. Large matching coefficient of unit power and long engine life
8. This Cummins commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary

Engine Technical Datasheet
Engine Model	QSB5.9-G3	Brand	DCEC Cummins
Rated Power	120kW	Number of Cylinders	6
Bore×Stroke	102mm×120mm	Governor	Electronic control(ECU)
Displacement	5.9Liters	Lubricant Capacity	16L
Starting method	DC24V

Alternator Technical Datasheet
Alternator Model	UCI274ES	Brand	Stamford
Rated Power	100kW	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H	Type	3phase 4wire

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

The container diesel generator set produced by our company uses well-known engines such as CUMMINS, Perkins, and VLOVO, and other brands to support the generator. Products with reliable quality and high market retention are selected, and brands such as ① Stanford generator (STAMFORD), ② Meiaudi generator (mecc alte), ③ Marathon generator, and other generators with excellent performance are selected, with a power coverage of 10-3000 kWe.Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable
