60HZ 250 Kva Diesel Generator Simple Maintenance 240kw Diesel Generator

Huide Power Generating Equipment Manufacturing Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 60HZ 250 Kva Diesel Generator Simple Maintenance 240kw Diesel Generator from wholesalers

    Buy cheap 60HZ 250 Kva Diesel Generator Simple Maintenance 240kw Diesel Generator from wholesalers
    • Buy cheap 60HZ 250 Kva Diesel Generator Simple Maintenance 240kw Diesel Generator from wholesalers

    60HZ 250 Kva Diesel Generator Simple Maintenance 240kw Diesel Generator

    Ask Lasest Price
    Brand Name : Baudouin
    Model Number : HD-200GF
    Certification : ISO9001
    Price : Email reply
    Payment Terms : LC,TTB
    Supply Ability : hundred
    Delivery Time : 10-25 days
    • Product Details
    • Company Profile

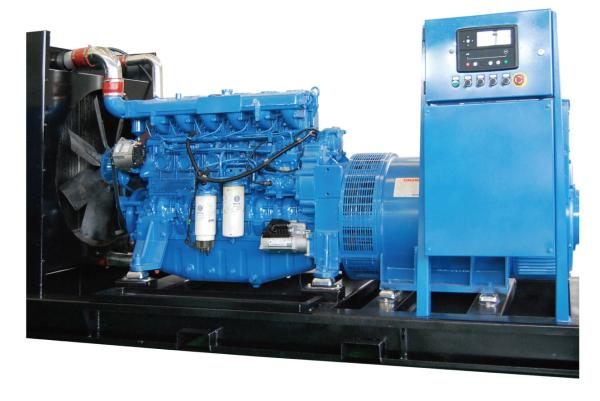

    60HZ 250 Kva Diesel Generator Simple Maintenance 240kw Diesel Generator

    Rated Power 250kVA Baudouin Diesel Generator Set Base Type Oil Tank Land Power Station
    1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Baudouin engine (Baudouin). Introduction to Baudouin Engine: Baudouin Engine Company was officially established in 1918. After more than 100 years of accumulation, Perkins is the world's leading manufacturer of power equipment, with a power range of 20~3600 horsepower, widely used in construction machinery, mining Machinery, agricultural machinery, ships, oil and gas fields.
    2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as Stamford generator (STAMFORD) Alternator - Low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation
    3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
    4. Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.

    5. "Zero" risk commitment: zero links in the middle, the most favorable price

    6. Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable

    7.

    Gen-set Specifications
    Gen-set ModelHD-200GFRated Frequency50Hz/60Hz
    Rated Power200kWe/250kVARated Speed1500rpm/1800rpm
    Standby Power220kWe/275kVARated Current360A
    Rated Voltage400/440VWeight2100kg
    Fuel Consumption(Rated)210g/kW•h

    Outline Dimension(L×W×H)

    2950×950×1550mm
    Engine Technical Datasheet
    Engine Model6M16G275/5BrandBaudouin
    Rated Power240kWNumber of Cylinders6
    Bore×Stroke126mm×130mmGovernorElectronic
    Displacement9.726LitersLubricant Capacity24L
    Starting methodDC24V
    Alternator Technical Datasheet
    Alternator ModelS4L1D-C41BrandStanford
    Rated Power208kWProtection GradeIP23
    Voltage regulationAVRExcitationbrushless PMG
    Insulation GradeHType3phase 4wire
    Control system Technical Datasheet

    1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines.

    2,Microcomputer can be set on the control panel input, output, alarm, delay and other

    3,parameters.Maintenance, manual, automatic and other modes of operation.
    Display Data

    1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator

    2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh
    Detection and protection function

    1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm

    2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

    Quality 60HZ 250 Kva Diesel Generator Simple Maintenance 240kw Diesel Generator for sale
