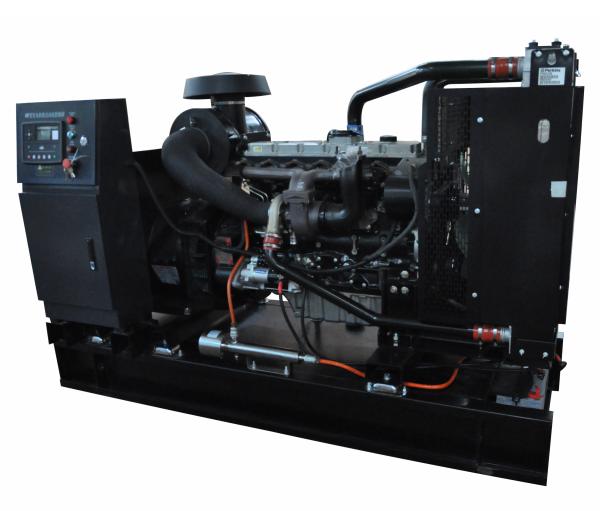

Rated Power 10-400kWe Perkins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Perkins engine (Perkins). Brief introduction of Perkins engine: The British Perkins Engine Company was formally established in 1932. After more than 90 years of accumulation, Perkins is the world's leading manufacturer of power equipment, with a power range of 5~2800 horsepower, widely used in construction machinery and mining machinery , agricultural machinery, ships, oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries.
5. Large matching coefficient of unit power and long engine life
6. The quality of the whole machine is reliable, and it is safe and convenient to use.
7. Optional Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability. Alternator - Low reactance 2/3 pitch windings
8. Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable.

Engine Technical Datasheet
Engine Model	403/404/1103/1104/ 1106/1206/1506/ 2206 Serise	Brand	Perkins
Rated Power	10-435kW	Number of Cylinders	3/4/6
Displacement	1.1-15.2Liters	Governor	Electronic/Machinery
Starting method	DC12/24V	Lubricant Capacity	4.9-40L

Alternator Technical Datasheet
Rated Power	10-400kW	Brand	Stanford
Voltage regulation	AVR	Protection Grade	IP23
Type	3phase 4wire	Excitation	brushless PMG
Insulation Grade	H

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional

Factory reserve

The container diesel generator set produced by our company uses well-known engines such as CUMMINS, Perkins, and VLOVO, and other brands to support the generator. Products with reliable quality and high market retention are selected, and brands such as ① Stanford generator (STAMFORD), ② Meiaudi generator (mecc alte), ③ Marathon generator, and other generators with excellent performance are selected, with a power coverage of 10-3000 kWe.Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable
