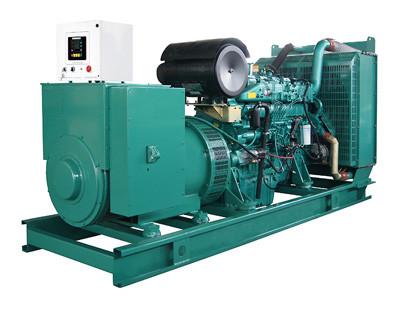

Rated Power 125kVA Yuchai Diesel Generator Set Base Type Oil Tank Land Power Station

1. Reliable power quality: The diesel generator set produced by our company is a well-known Chinese brand Yuchai engine (YUCHAI). Introduction to Yuchai Engine: Yuchai Company was officially established in 1951. Yuchai is the pioneer of domestic engines in China, with a power range of 20-3600 horsepower, widely used in construction machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.

2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.

3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,

Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.

4. Advanced unit integration system, supporting manual mode and automatic mode
5. The unit has low capacity loss and low oil consumption to meet the industrial power demand
6. Regardless of the power system architecture required to meet your market or application needs our provides a superior combination of solution design expertise, integrated equipment and communication software as well as ongoing operation and generator maintenance services to help you maintain a resilient operation at your site.

7. Diesel generator sets are widely used in high-rise office buildings, hotels, hospitals, industrial and mining, rural areas, field operations in mountainous areas, power and lighting for enterprises, institutions, schools or professional households

Engine Technical Datasheet
Engine Model	YC4A180L-D20	Brand	Yuchai
Rated Power	120kW	Number of Cylinders	4
Bore×Stroke	108mm×132mm	Governor	Electronic
Displacement	4.84Liters	Lubricant Capacity	17L
Starting method	DC24V

Alternator Technical Datasheet
Alternator Model	UCI274ES	Brand	Stamford
Rated Power	100kW	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H	Type	3phase 4wire

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

The container diesel generator set produced by our company uses well-known engines such as CUMMINS, Perkins, and VLOVO, and other brands to support the generator. Products with reliable quality and high market retention are selected, and brands such as ① Stanford generator (STAMFORD), ② Meiaudi generator (mecc alte), ③ Marathon generator, and other generators with excellent performance are selected, with a power coverage of 10-3000 kWe.Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable
