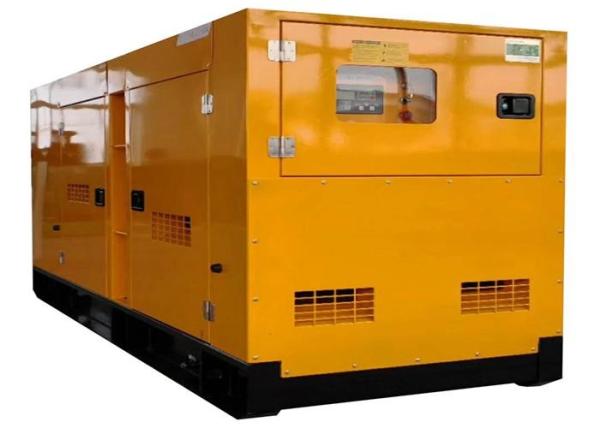

Rated Power 150kVA Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.Huide can produce more than 10,000 generator sets of various types annually, and the unit power ranges from 2 to 8700kW
2. The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD)Optional Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability. Alternator - Low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries. The quality of the whole machine is reliable, and it is safe and convenient to use.
5. The main components are from American technology with reliable quality
6. The unit has low capacity loss and low oil consumption to meet the industrial power demand

7. Huide Power generating set products will be fully used in communications, electric power, oil and gas fields and other industries

Engine Technical Datasheet
Engine Model	QSB6.7-G3	Brand	DCEC Cummins
Rated Power	151kW	Number of Cylinders	6
Bore×Stroke	107mm×124mm	Governor	Electronic control(ECU)
Displacement	6.7Liters	Lubricant Capacity	18L
Starting method	DC24V

Alternator Technical Datasheet
Alternator Model	UCI274F	Brand	Stamford
Rated Power	128kW	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H	Type	3phase 4wire

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional

Factory reserve

The container diesel generator set produced by our company uses well-known engines such as CUMMINS, Perkins, and VLOVO, and other brands to support the generator. Products with reliable quality and high market retention are selected, and brands such as ① Stanford generator (STAMFORD), ② Meiaudi generator (mecc alte), ③ Marathon generator, and other generators with excellent performance are selected, with a power coverage of 10-3000 kWe.Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable
